Horizontal Directional Drills

Gladiator G10

Name: Gladiator G10
Brand: Gladiator HDD

A compact horizontal directional drill with manual rod loading, hydraulic anchors, and an onboard mud pump. The G10L is equipped with a rod loader.

Compact utility drilling with manual rod loading on the G10; rod-loader-equipped G10L available.

thrust / pullback

11,240 lbf

torque

1,659 lb-ft

engine

59 hp Yanmar 4TNV98C-PLYS diesel

Request a

Gladiator G10

Quote

Product Overview

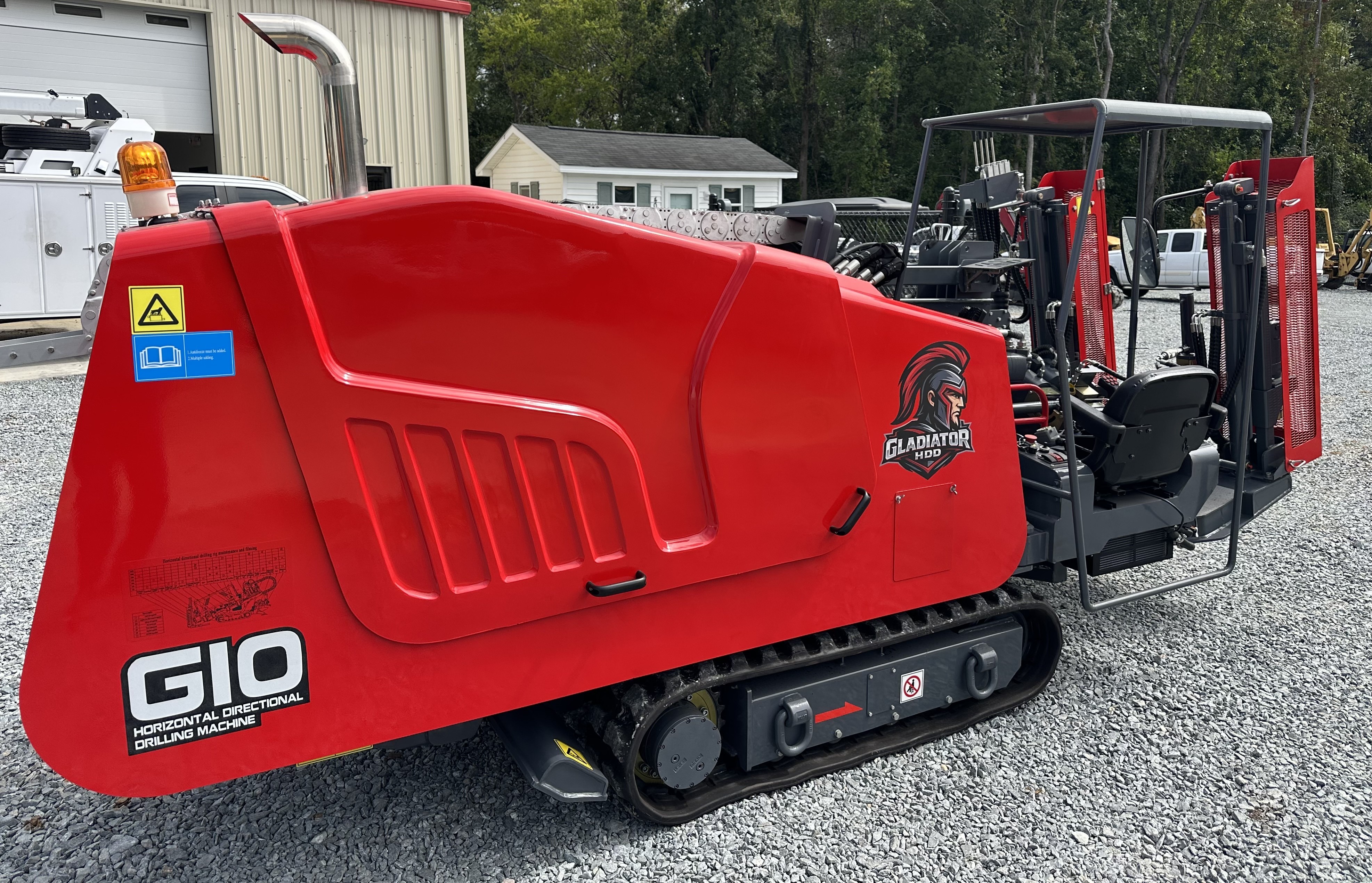

The Gladiator G10 horizontal directional drill is built for underground pipe and cable installation. Its compact tracked design helps crews position the machine on constrained jobsites. The G10 uses manual rod loading; the G10L is equipped with a rod loader.

The G10 delivers 11,240 lbf of maximum thrust and pullback and 1,659 lb-ft of maximum spindle torque. A 48-rod onboard rack keeps drill rods close at hand. Hydraulic anchors, adjustable mud flow, and dual-joystick drilling controls support the drilling workflow. Actual drilling performance depends on ground conditions and tooling.

Applications

Fiber-optic and telecommunications conduit
Electrical conduit
Water service lines
Gas service lines
Irrigation lines
Residential and light commercial utility crossings

‍

Technical Specifications

thrust / pullback

11,240 lbf

thrust / pullback speed

226 ft/min (no load)

rotary torque

1,659 lb-ft

engine

59 hp Yanmar 4TNV98C-PLYS diesel

onboard mud pump

20 US gpm; maximum pressure 870 psi

drill rod thread/size

1.65 in OD × 71.85 in length

drill rod capacity

48 rods

Entry Angle

14–20°

rotation speed

250 rpm

carriage system

Dual Rack and Pinion

suggested crossing length

Up to 328 ft (condition-dependent)

suggested reaming diameter

Up to 15.75 in (condition-dependent)

machine weight

9,766 lb

machine dimensions

175.20 in L × 59.06 in W × 62.60 in H

Standard Features

Manual rod loading and 48-rod onboard rack
Dual joysticks and automatic drilling with adjustable thrust and torque pressure cutoffs
Thread lubrication and front/rear clamps
Adjustable mud flow, maximum-flow command, and flow/pressure display
Hydraulic anchors, mast-angle adjustment, rear support, and wired travel control box
Strike alert/anti-shock system, remote rotation lockout, and emergency stops

Optional Features

The G10L is equipped with a rod loader. Contact Gladiator for available configurations.

Ready to Put the Gladiator G10 to Work?

Talk with our team about your application, tooling needs, availability, and delivery.
